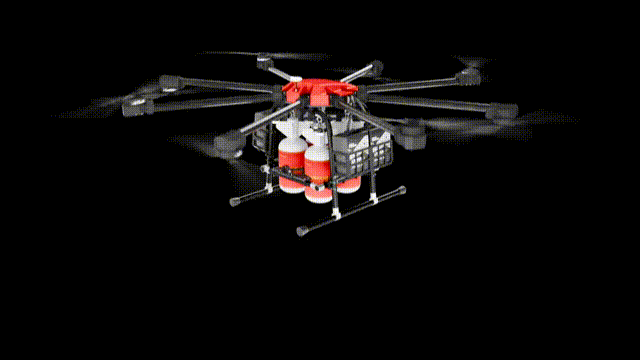

Firefighting Drone is designed for rapid and efficient fire suppression in mountainous areas, grasslands, forests, and other challenging terrains. Equipped with a release mechanism, targeting distributor, laser rangefinder, and four 25kg fire-extinguishing bombs, this drone delivers precise and effective fire control from the air.With its high payload capacity and advanced targeting system, this drone ensures accurate deployment of fire suppression agents, making it an essential tool for wildfire prevention and emergency response. Engineered for high efficiency, stability, and adaptability, it is a game-changer in aerial firefighting operations.
Product Features
The H300 Firefighting Drone excels in rapid deployment and autonomous operation, ideal for diverse terrains.

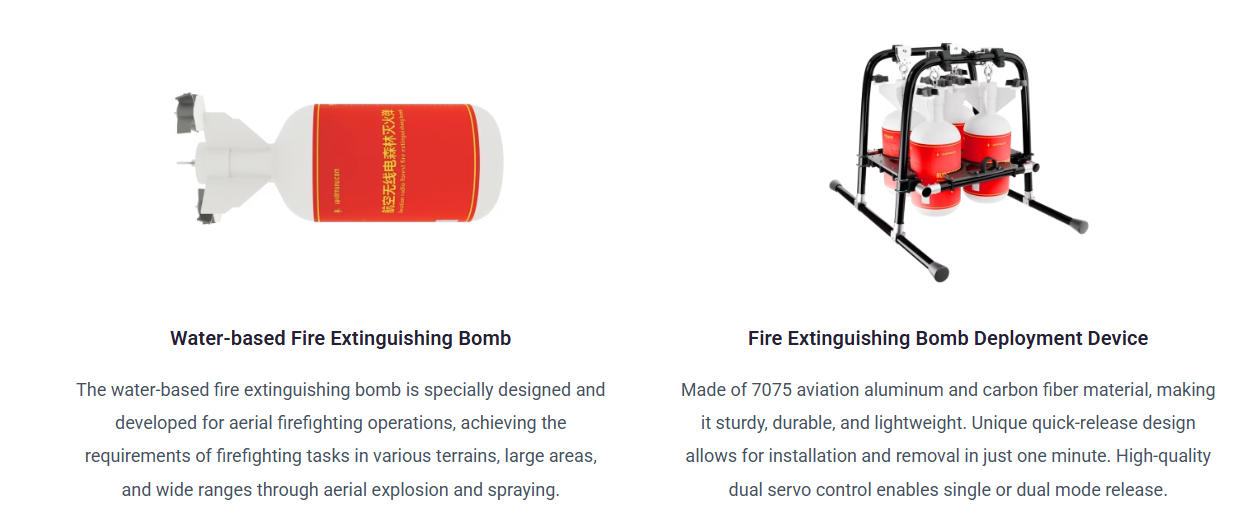

Compatible Fire Extinguishing Bombs
The H300 Firefighting UAV features an intelligent control system for precise extinguishing, carrying four 25KG water-based bombs to efficiently cover 200-300m² per mission.
Technical Specifications
1. Aerial Platform
Dimensions (unfolded) 4605 * 4605 * 990 mm
Max. Payload 150 kg
Weight 107.8 kg
Max. Takeoff Weight 257.8 kg
Operation Height ≤ 1000m
Max. Altitude Limit 4500 m
2. Fire-extinguishing Bombs
Caliber ≤ φ 260 mm
Total Length of the Bomb ≤ 650 mm
Type of Fire Extinguishing Agent ABC dry chemical or water-based extinguishing agent
Net Weight ≥ 25 kg
Extinguishing Agent Dispersion Radius ≥ 5 m
Coverage Area ≥ 50 m²
Safety Radius ≥ 20 m
Safety Arming Height ≥ 50 m
Safe Current ≤ 200 mA
Maximum Profile ≤ 350mm
Radio Proximity Detonation Height 0~6 Impact detonation
Total Weight ≤ 23kg
*The parameters above are theoretical values, based on tests conducted under ideal conditions. Actual operation may result in deviations due to varying circumstances, so please rely on real-world testing data for accuracy.
H300 High-altitude Operation Performance
