Key Features
Ultimate Performance
Quick Response
◆Disassembly and assembly can
be completed in 15 min
Very Low Threshold
Max Flight Speed
The max flight speed is as fast as 30m/s(110km/h),this will make your mission more efficient.
The V500H adopts hybrid power, with streamlined high-aspect-ratio wings and wing-body integrated layout,
and can achieve 10h of endurance. Meanwhile, the V500H is equipped with a fully automatic takeoff and
vertical takeoff and landing system and can be additionally equipped with a high-precision stable
photoelectric platform. The UAV is featured by fully autonomous operation, providing users with more
convenient and reliable operations, more flexible application and more simplified operation threshold

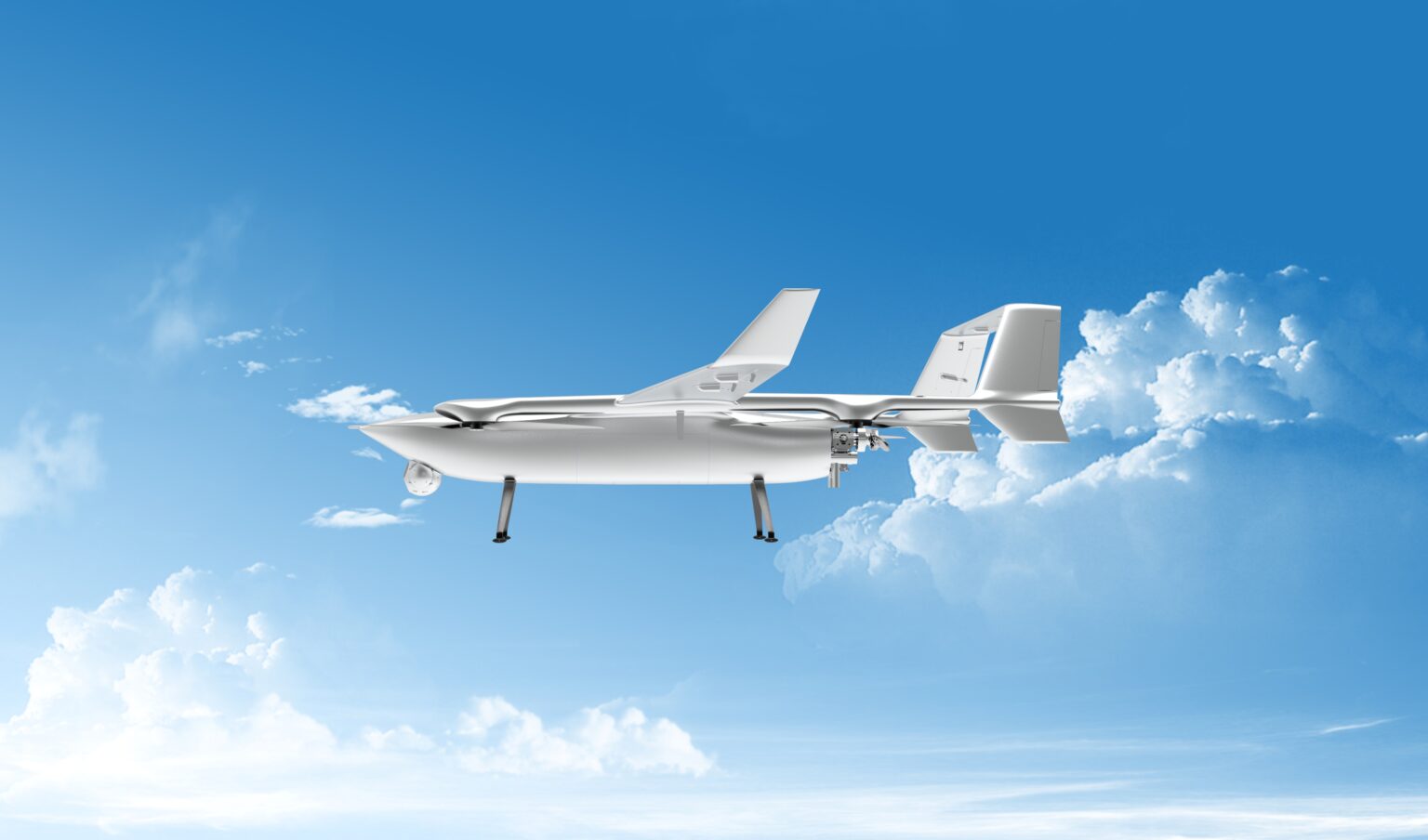

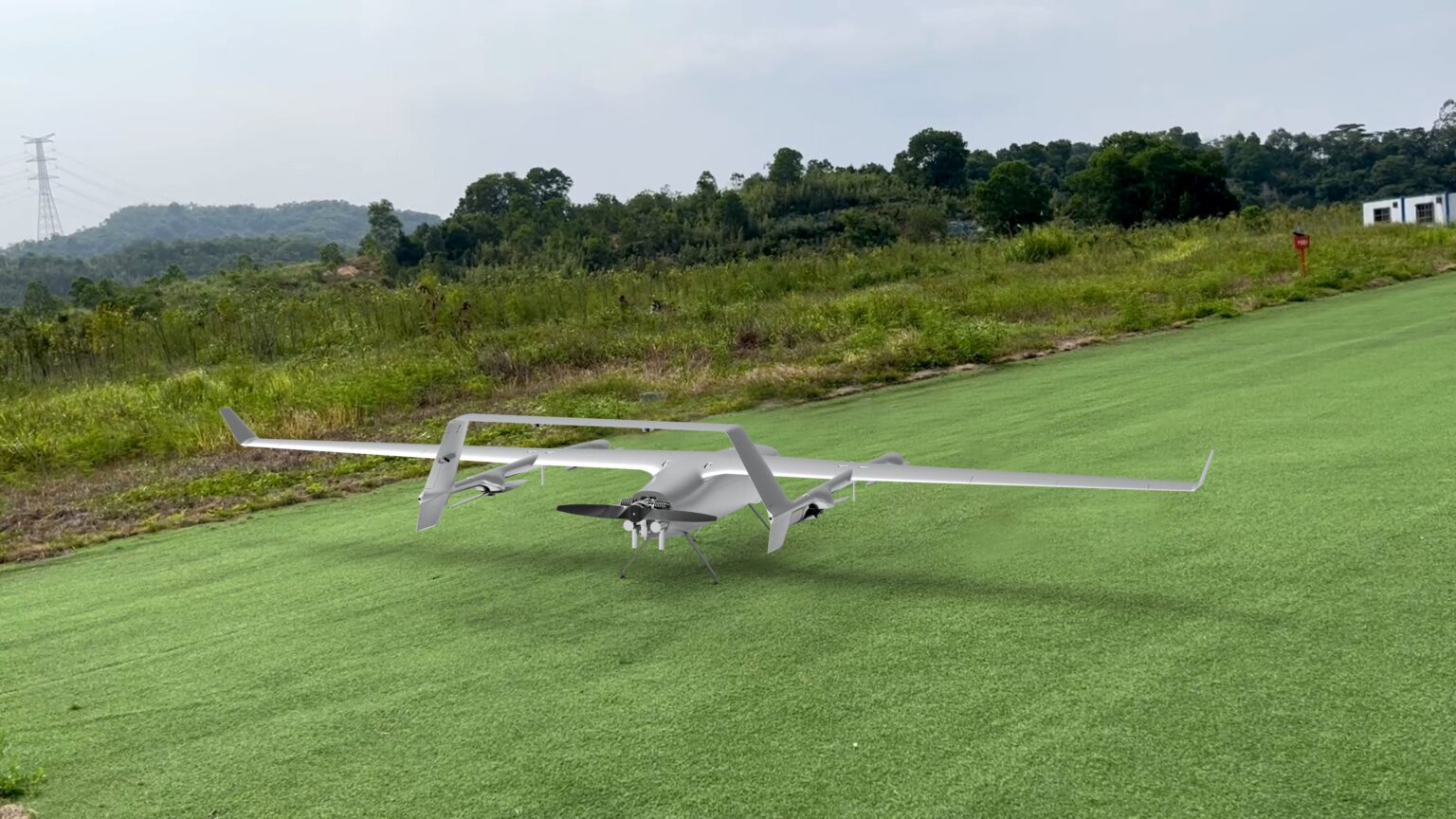

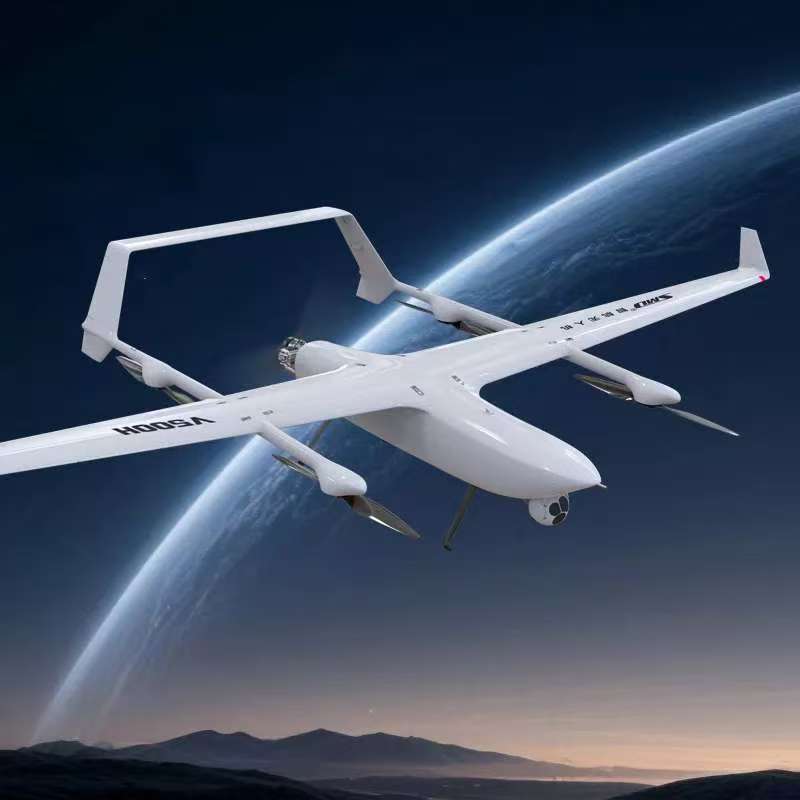

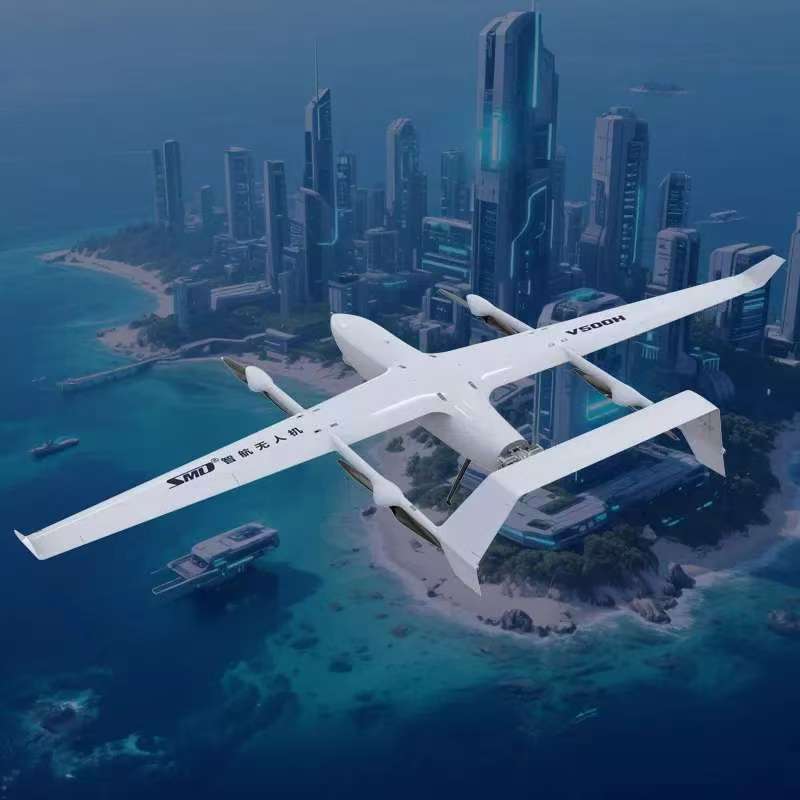

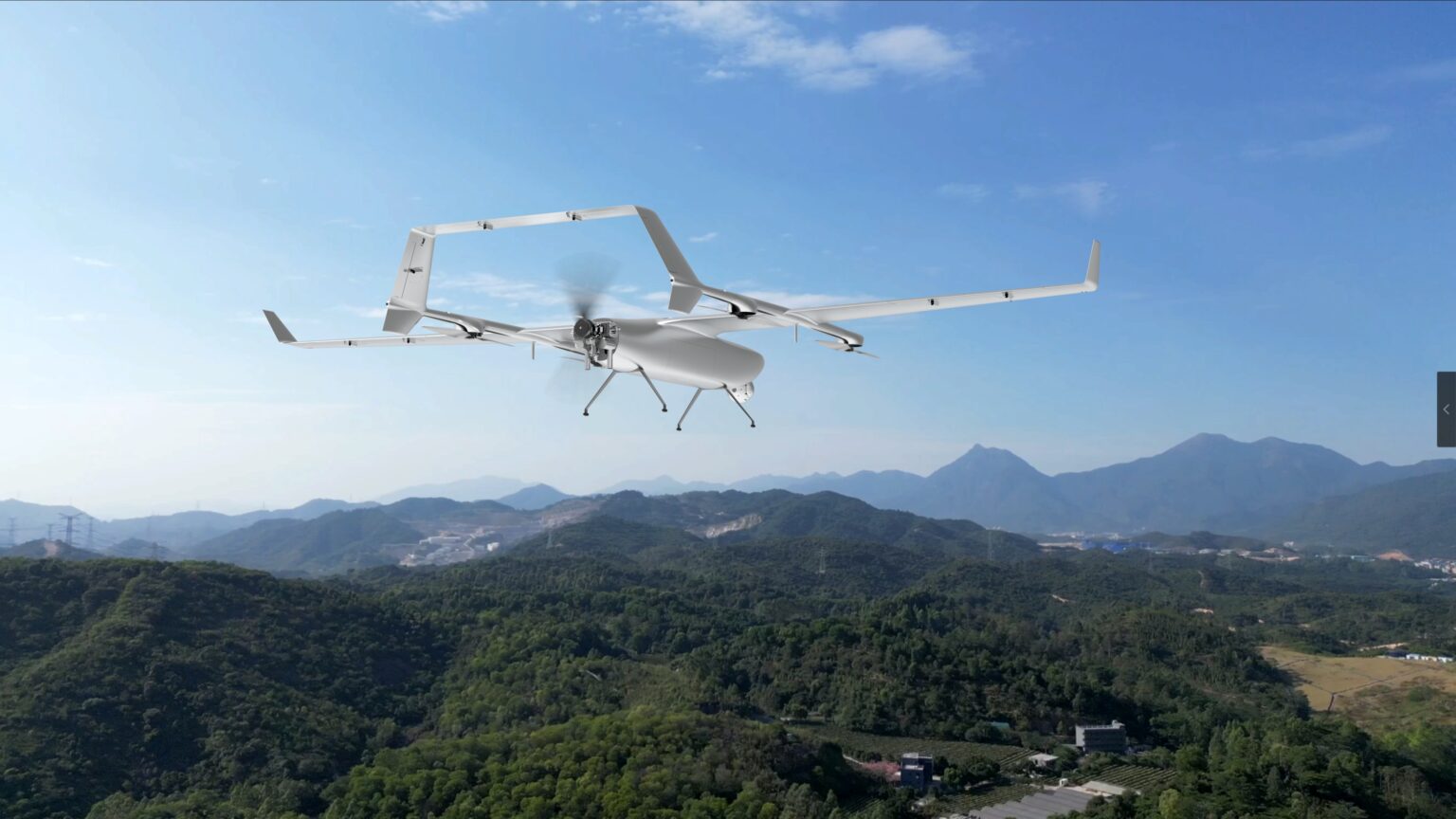

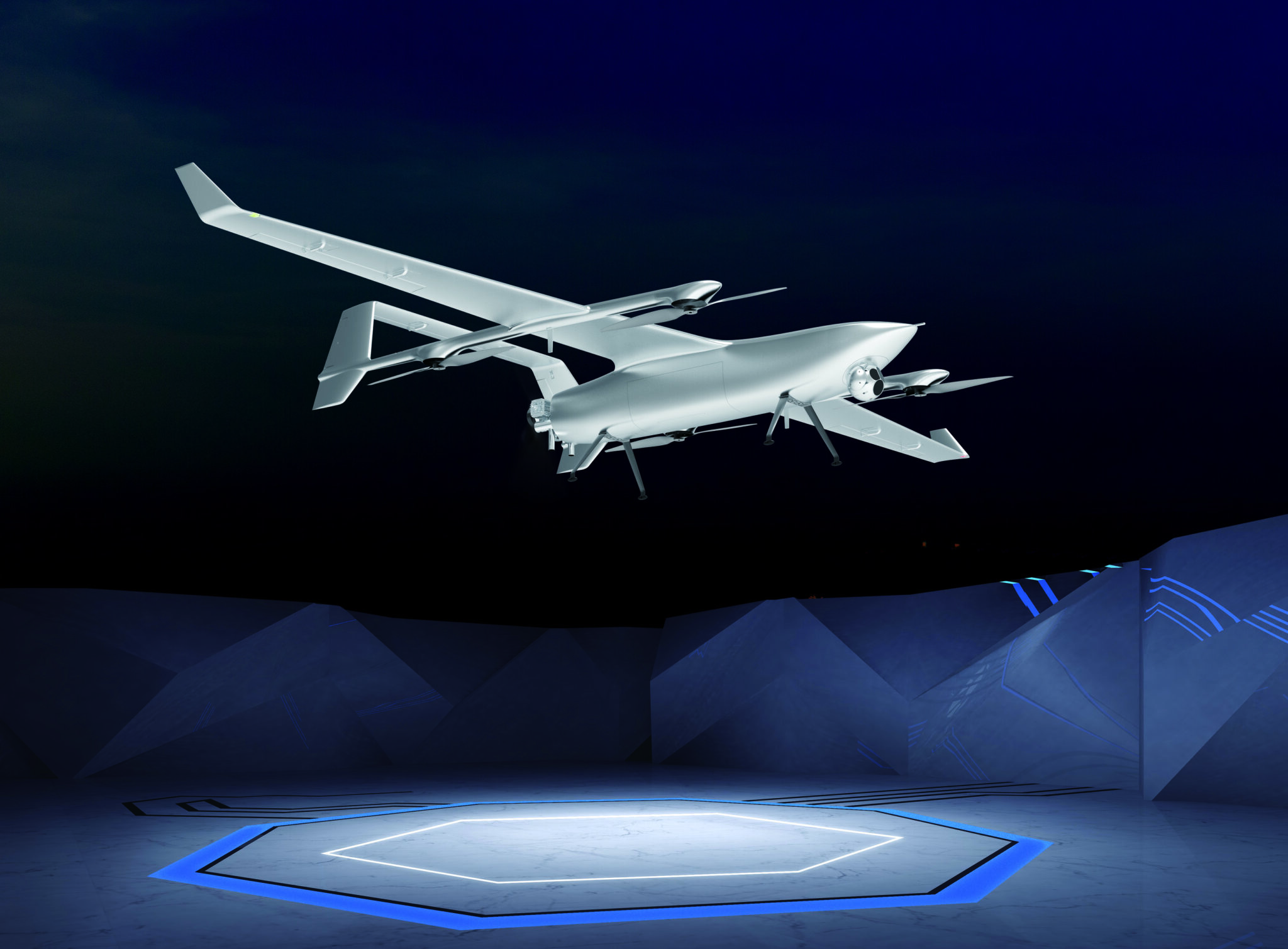

V500H Borned for surveillance
V500H effectively increase its endurance capacity and load capacity through improving its power system, flight control system and shape streamline design.
V500H
Specifications
Drone dimension | 4940*2560*900mm |
Drone weight | 32kg |
Standard takeoff weight（load 10KG） | 55kg |
Max Takeoff weight | 60kg |
Max Flight Speed | 110km/h |
Mission cruise speed | 76km/h |
Max Altitude | 4500m |
Max Flight Time | 600min |
Max Flight Distance | 800km |
Weather resistance | IP53, not recommended to fly in fog, rain and snow |
Operating temperature | -20 to +60 °C |
Indusry Applications
V500H is used to perform patrol, reconnaissance, evidence collection, search and rescue, aerial survey and other tasks. It is suitable for traffic patrol, border patrol, urban patrol, drug control, forest fire prevention, urban firefighting, power inspection, smart city construction and other application scenarios.
V500h RTF version parts
Package Box
